3_GSEA
Yang & Steve
24/02/2020
Last updated: 2020-03-17
Checks: 6 1
Knit directory: 20190717_Lardelli_RNASeq_Larvae/
This reproducible R Markdown analysis was created with workflowr (version 1.6.0). The Checks tab describes the reproducibility checks that were applied when the results were created. The Past versions tab lists the development history.
The R Markdown file has unstaged changes. To know which version of the R Markdown file created these results, you’ll want to first commit it to the Git repo. If you’re still working on the analysis, you can ignore this warning. When you’re finished, you can run wflow_publish to commit the R Markdown file and build the HTML.
Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.
The command set.seed(20200227) was run prior to running the code in the R Markdown file. Setting a seed ensures that any results that rely on randomness, e.g. subsampling or permutations, are reproducible.
Great job! Recording the operating system, R version, and package versions is critical for reproducibility.
Nice! There were no cached chunks for this analysis, so you can be confident that you successfully produced the results during this run.
Great job! Using relative paths to the files within your workflowr project makes it easier to run your code on other machines.
Great! You are using Git for version control. Tracking code development and connecting the code version to the results is critical for reproducibility. The version displayed above was the version of the Git repository at the time these results were generated.
Note that you need to be careful to ensure that all relevant files for the analysis have been committed to Git prior to generating the results (you can use wflow_publish or wflow_git_commit). workflowr only checks the R Markdown file, but you know if there are other scripts or data files that it depends on. Below is the status of the Git repository when the results were generated:
Ignored files:
Ignored: .DS_Store
Ignored: .Rhistory
Ignored: .Rproj.user/
Ignored: 1_DE-gene-analysis_cache/
Ignored: 1_DE-gene-analysis_files/
Ignored: analysis/.DS_Store
Ignored: analysis/.Rhistory
Ignored: analysis/.Rproj.user/
Ignored: data/.DS_Store
Ignored: data/0_rawData/.DS_Store
Ignored: data/1_trimmedData/.DS_Store
Ignored: data/2_alignedData/.DS_Store
Ignored: files/
Ignored: output/.DS_Store
Unstaged changes:
Modified: analysis/3_GSEA.Rmd
Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes.
These are the previous versions of the R Markdown and HTML files. If you’ve configured a remote Git repository (see ?wflow_git_remote), click on the hyperlinks in the table below to view them.
| File | Version | Author | Date | Message |
|---|---|---|---|---|
| Rmd | 9a8eda4 | yangdongau | 2020-03-17 | rebuild workflow |
| html | 9a8eda4 | yangdongau | 2020-03-17 | rebuild workflow |
| Rmd | 13abd74 | yangdongau | 2020-03-17 | Use logFC replace rank statistic in pathview. |
| html | 7d1a0d3 | yangdongau | 2020-03-04 | test |
| Rmd | fa3b603 | yangdongau | 2020-03-04 | 1.Reorganize the files |
| html | fa3b603 | yangdongau | 2020-03-04 | 1.Reorganize the files |
| Rmd | 7e50b3b | yangdongau | 2020-02-28 | fix |
| html | 7e50b3b | yangdongau | 2020-02-28 | fix |
| Rmd | 8398869 | yangdongau | 2020-02-28 | Merge branch ‘master’ of github.com:yangdongau/20190717_Lardelli_RNASeq_Larvae |
| html | 8398869 | yangdongau | 2020-02-28 | Merge branch ‘master’ of github.com:yangdongau/20190717_Lardelli_RNASeq_Larvae |
| Rmd | 3c8b6e1 | yangdongau | 2020-02-28 | Add in annotations. |
| html | 3c8b6e1 | yangdongau | 2020-02-28 | Add in annotations. |
| Rmd | 8f91594 | yangdongau | 2020-02-28 | Add in annotations. |
| html | 8f91594 | yangdongau | 2020-02-28 | Add in annotations. |
| Rmd | 4e8adcc | yangdongau | 2020-02-28 | change wrong work |
| html | 4e8adcc | yangdongau | 2020-02-28 | change wrong work |
| Rmd | 91568d2 | yangdongau | 2020-02-28 | Set KEGG diagram directory clean up the folder |
| html | 91568d2 | yangdongau | 2020-02-28 | Set KEGG diagram directory clean up the folder |
| Rmd | 0ce8f79 | yangdongau | 2020-02-27 | clean up library packages |
| html | 0ce8f79 | yangdongau | 2020-02-27 | clean up library packages |
| Rmd | dc5cbe9 | yangdongau | 2020-02-27 | rename&clean up packages |
| Rmd | 3b63601 | yangdongau | 2020-02-27 | index 3_GSEA.rmd |
| html | 3b63601 | yangdongau | 2020-02-27 | index 3_GSEA.rmd |
| Rmd | 323a5d7 | Yang Dong | 2020-02-27 | Add in library(rWikiPathways) |
| Rmd | e75f1f6 | Yang Dong | 2020-02-27 | fix |
| Rmd | bc39d1c | Yang Dong | 2020-02-27 | Output results |
| Rmd | ae5f031 | Yang Dong | 2020-02-26 | update of wikipathway |
| Rmd | b2d2284 | Yang Dong | 2020-02-25 | Reorganized |
Setup
library(limma)
library(edgeR)
library(tidyverse)
library(magrittr)
library(pander)
library(ggrepel)
library(scales)
library(plyr)
library(ggraph)
library(tidygraph)
library(fgsea)
library(pathview)
library(msigdbr)
library(rWikiPathways)
theme_set(theme_bw())
panderOptions("big.mark", ",")
panderOptions("table.split.table", Inf)
panderOptions("table.style", "rmarkdown")
if (interactive()) setwd(here::here("analysis"))Data load
dgeList <- read_rds(here::here("data","dgeList.rds"))
entrezGenes <- dgeList$genes %>%
dplyr::filter(!is.na(entrez_gene)) %>%
unnest(entrez_gene) %>%
dplyr::rename(entrez_gene = entrez_gene)
topTable <- file.path(here::here("output", "topTable.csv")) %>%
read_csv()Gene ranks
Genes were ranked by -sign(logFC)*log10(PValue).
ranks <- topTable %>%
mutate(stat = -sign(logFC) * log10(PValue)) %>%
dplyr::arrange(stat) %>%
with(structure(stat, names = ensembl_gene_id))Databases used for testing
Hallmark and KEGG pathway gene mappings were achieved by msigdbr, and Wiki pathway gene mapping was downloaded by rWikiPathways.
hallmark <- msigdbr("Danio rerio", category = "H") %>%
left_join(entrezGenes) %>%
dplyr::filter(!is.na(ensembl_gene_id)) %>%
distinct(gs_name, ensembl_gene_id, .keep_all = TRUE)
hallmarkByGene <- hallmark %>%
split(f = .$ensembl_gene_id) %>%
lapply(extract2, "gs_name")
hallmarkByID <- hallmark %>%
split(f = .$gs_name) %>%
lapply(extract2, "ensembl_gene_id")kegg <- msigdbr("Danio rerio", category = "C2", subcategory = "CP:KEGG") %>%
left_join(entrezGenes) %>%
dplyr::filter(!is.na(ensembl_gene_id)) %>%
distinct(gs_name, ensembl_gene_id, .keep_all = TRUE)
keggByGene <- kegg %>%
split(f = .$ensembl_gene_id) %>%
lapply(extract2, "gs_name")
keggByID <- kegg %>%
split(f = .$gs_name) %>%
lapply(extract2, "ensembl_gene_id")wikidownload <- downloadPathwayArchive(organism = "Danio rerio", format = "gmt")
wiki <- gmtPathways(here::here("analysis", "wikipathways-20200210-gmt-Danio_rerio.gmt"))
wikilist <- names(wiki) %>%
lapply(function(x){
tibble(pathway = x, entrez_gene = wiki[[x]])
}) %>%
bind_rows() %>%
mutate(entrez_gene = as.numeric(entrez_gene)) %>%
left_join(entrezGenes) %>%
dplyr::filter(!is.na(ensembl_gene_id)) %>%
distinct(pathway, ensembl_gene_id, .keep_all = TRUE) %>%
mutate(pathway = str_remove_all(pathway, "%.+"))
wikiByGene <- wikilist %>%
split(f = .$ensembl_gene_id) %>%
lapply(extract2, "pathway")
wikiByID <- wikilist %>%
split(f = .$pathway) %>%
lapply(extract2, "ensembl_gene_id")Gene Set Enrichment analysis (GSEA)
Enrichment analysis of each pathway data sets were performed by fgsea, using gene ranks and mappings. A bonferroni-correction cutoff of 0.05 was used to identify signficant results.
Hallmark pathways
set.seed(22)
# Run GSEA for hallmark
fgseaHallmark <- fgsea(hallmarkByID, ranks, nperm=1e5) %>%
as_tibble() %>%
dplyr::rename(FDR = padj) %>%
mutate(padj = p.adjust(pval, "bonferroni")) %>%
dplyr::arrange(pval)
fgseaHallmarkTop <- fgseaHallmark %>%
dplyr::filter(padj < 0.05)
fgseaHallmarkTop %>%
dplyr::select(-leadingEdge, -nMoreExtreme) %>%
pander(
style = "rmarkdown",
split.tables = Inf,
justify = "lrrrrrr",
caption = paste(
"The", nrow(.), "most significantly enriched Hallmark pathways.",
"This corresponds to an FDR of", percent(max(.$FDR)))
)| pathway | pval | FDR | ES | NES | size | padj |
|---|---|---|---|---|---|---|
| HALLMARK_OXIDATIVE_PHOSPHORYLATION | 1.22e-05 | 7.733e-05 | -0.5558 | -1.9 | 202 | 0.0006101 |
| HALLMARK_MTORC1_SIGNALING | 1.224e-05 | 7.733e-05 | -0.5328 | -1.818 | 198 | 0.0006118 |
| HALLMARK_XENOBIOTIC_METABOLISM | 1.229e-05 | 7.733e-05 | -0.524 | -1.783 | 193 | 0.0006143 |
| HALLMARK_GLYCOLYSIS | 1.231e-05 | 7.733e-05 | -0.5341 | -1.816 | 191 | 0.0006154 |
| HALLMARK_EPITHELIAL_MESENCHYMAL_TRANSITION | 1.234e-05 | 7.733e-05 | -0.5348 | -1.814 | 187 | 0.0006171 |
| HALLMARK_G2M_CHECKPOINT | 1.239e-05 | 7.733e-05 | -0.7154 | -2.42 | 182 | 0.0006197 |
| HALLMARK_E2F_TARGETS | 1.247e-05 | 7.733e-05 | -0.6879 | -2.317 | 174 | 0.0006236 |
| HALLMARK_FATTY_ACID_METABOLISM | 1.264e-05 | 7.733e-05 | -0.5648 | -1.883 | 157 | 0.0006319 |
| HALLMARK_CHOLESTEROL_HOMEOSTASIS | 1.392e-05 | 7.733e-05 | -0.6557 | -1.997 | 76 | 0.0006959 |
| HALLMARK_INTERFERON_GAMMA_RESPONSE | 8.888e-05 | 0.0004444 | -0.5242 | -1.741 | 152 | 0.004444 |
| HALLMARK_ESTROGEN_RESPONSE_LATE | 0.000184 | 0.0008364 | -0.4788 | -1.631 | 195 | 0.0092 |
| HALLMARK_COAGULATION | 0.0002102 | 0.0008759 | -0.543 | -1.75 | 117 | 0.01051 |
| HALLMARK_MYC_TARGETS_V1 | 0.0002328 | 0.0008952 | -0.4753 | -1.62 | 197 | 0.01164 |
| HALLMARK_MYOGENESIS | 0.0007132 | 0.002547 | -0.4647 | -1.58 | 192 | 0.03566 |

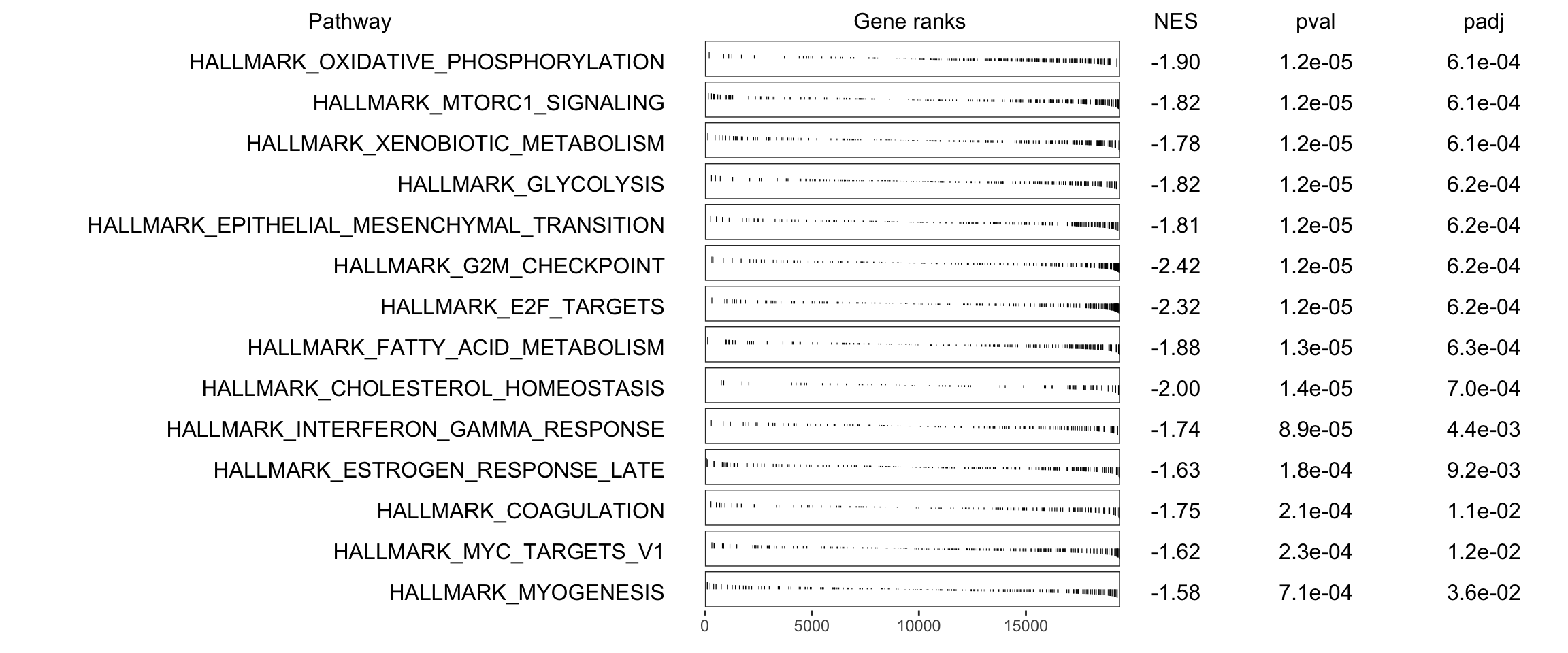

# Make a table plot of significant Hallmark pathways
if (interactive()) grid::grid.newpage()
plotGseaTable(
hallmarkByID[dplyr::filter(fgseaHallmark, padj < 0.05)$pathway], ranks, fgseaHallmark, gseaParam = 0.5
)
KEGG pathways
# Set seed to enable reproducibility
set.seed(22)
# Run GSEA for KEGG
fgseaKEGG <- fgsea(keggByID, ranks, nperm=1e5) %>%
as_tibble() %>%
dplyr::rename(FDR = padj) %>%
mutate(padj = p.adjust(pval, "bonferroni")) %>%
dplyr::arrange(pval)
# Create an object of pathways with adjusted p-value < 0.05 for construction of network diagrams. This should be done differently next time, but too much work has been done to change it now.
fgseaKEGGTop <- fgseaKEGG %>%
dplyr::filter(padj < 0.05)
fgseaKEGGTop %>%
dplyr::select(-leadingEdge, -nMoreExtreme) %>%
pander(
style = "rmarkdown",
split.tables = Inf,
justify = "lrrrrrr",
caption = paste(
"The", nrow(.), "most significantly enriched KEGG pathways.",
"This corresponds to an FDR of", percent(max(.$FDR)))
)| pathway | pval | FDR | ES | NES | size | padj |
|---|---|---|---|---|---|---|
| KEGG_ECM_RECEPTOR_INTERACTION | 1.399e-05 | 0.0009883 | -0.6872 | -2.073 | 71 | 0.002602 |
| KEGG_FATTY_ACID_METABOLISM | 1.487e-05 | 0.0009883 | -0.7538 | -2.097 | 43 | 0.002767 |
| KEGG_BETA_ALANINE_METABOLISM | 1.594e-05 | 0.0009883 | -0.835 | -2.047 | 22 | 0.002965 |
| KEGG_GLUTATHIONE_METABOLISM | 2.985e-05 | 0.001388 | -0.7293 | -2.02 | 42 | 0.005552 |
| KEGG_CELL_CYCLE | 3.983e-05 | 0.001482 | -0.5819 | -1.861 | 109 | 0.007408 |
| KEGG_DNA_REPLICATION | 7.616e-05 | 0.002361 | -0.732 | -1.954 | 34 | 0.01417 |
| KEGG_PYRIMIDINE_METABOLISM | 0.0001228 | 0.00323 | -0.5835 | -1.816 | 89 | 0.02283 |
| KEGG_BUTANOATE_METABOLISM | 0.0001389 | 0.00323 | -0.7416 | -1.932 | 30 | 0.02584 |
| KEGG_FOCAL_ADHESION | 0.000173 | 0.003575 | -0.4842 | -1.643 | 186 | 0.03217 |
| KEGG_OXIDATIVE_PHOSPHORYLATION | 0.0001954 | 0.003634 | -0.5379 | -1.752 | 127 | 0.03634 |

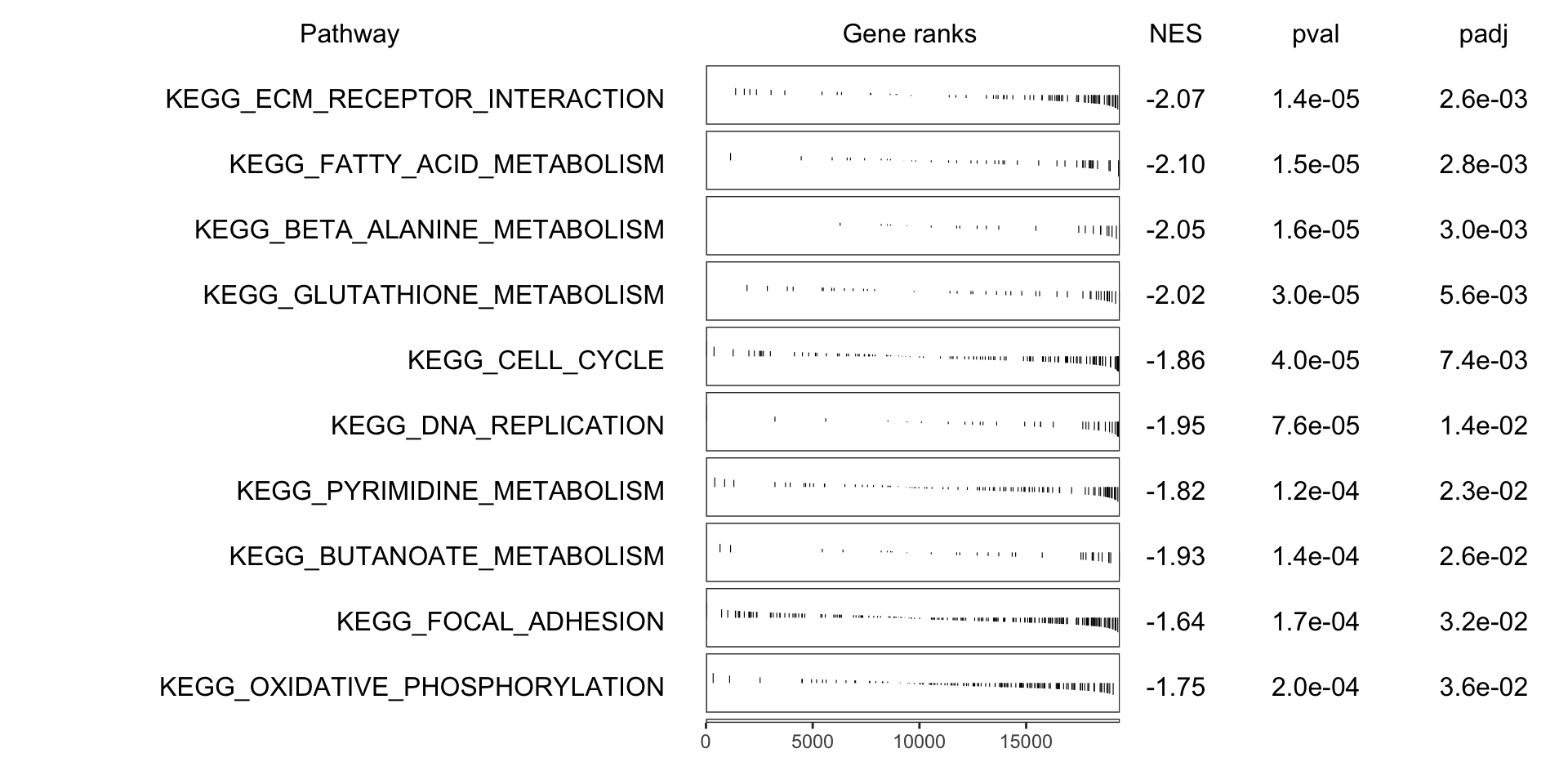

# Make a table plot of significant KEGG pathways
if (interactive()) grid::grid.newpage()
plotGseaTable(
keggByID[fgseaKEGGTop$pathway], ranks, fgseaKEGG, gseaParam = 0.5
)
WikiPathways
# Set seed to enable reproducibility
set.seed(22)
# Run GSEA for WikiPathways
fgseaWiki <- fgsea(wikiByID, ranks, nperm=1e5) %>%
as_tibble() %>%
dplyr::rename(FDR = padj) %>%
mutate(padj = p.adjust(pval, "bonferroni")) %>%
dplyr::arrange(pval)
# Create an object of pathways with adjusted p-value < 0.05 for construction of network diagrams. This should be done differently next time, but too much work has been done to change it now.
fgseaWikiTop <- fgseaWiki %>%
dplyr::filter(padj < 0.05)
fgseaWikiTop %>%
dplyr::select(-leadingEdge, -nMoreExtreme) %>%
pander(
style = "rmarkdown",
split.tables = Inf,
justify = "lrrrrrr",
caption = paste(
"The", nrow(.), "most significantly enriched Wiki pathways.",
"This corresponds to an FDR of", percent(max(.$FDR)))
)| pathway | pval | FDR | ES | NES | size | padj |
|---|---|---|---|---|---|---|
| Cell cycle | 1.401e-05 | 0.0004241 | -0.6997 | -2.109 | 71 | 0.001163 |
| G1 to S cell cycle control | 1.463e-05 | 0.0004241 | -0.7369 | -2.097 | 49 | 0.001214 |
| DNA Replication | 1.533e-05 | 0.0004241 | -0.807 | -2.117 | 31 | 0.001272 |
| Cholesterol Biosynthesis | 0.0002464 | 0.005113 | -0.837 | -1.894 | 15 | 0.02045 |

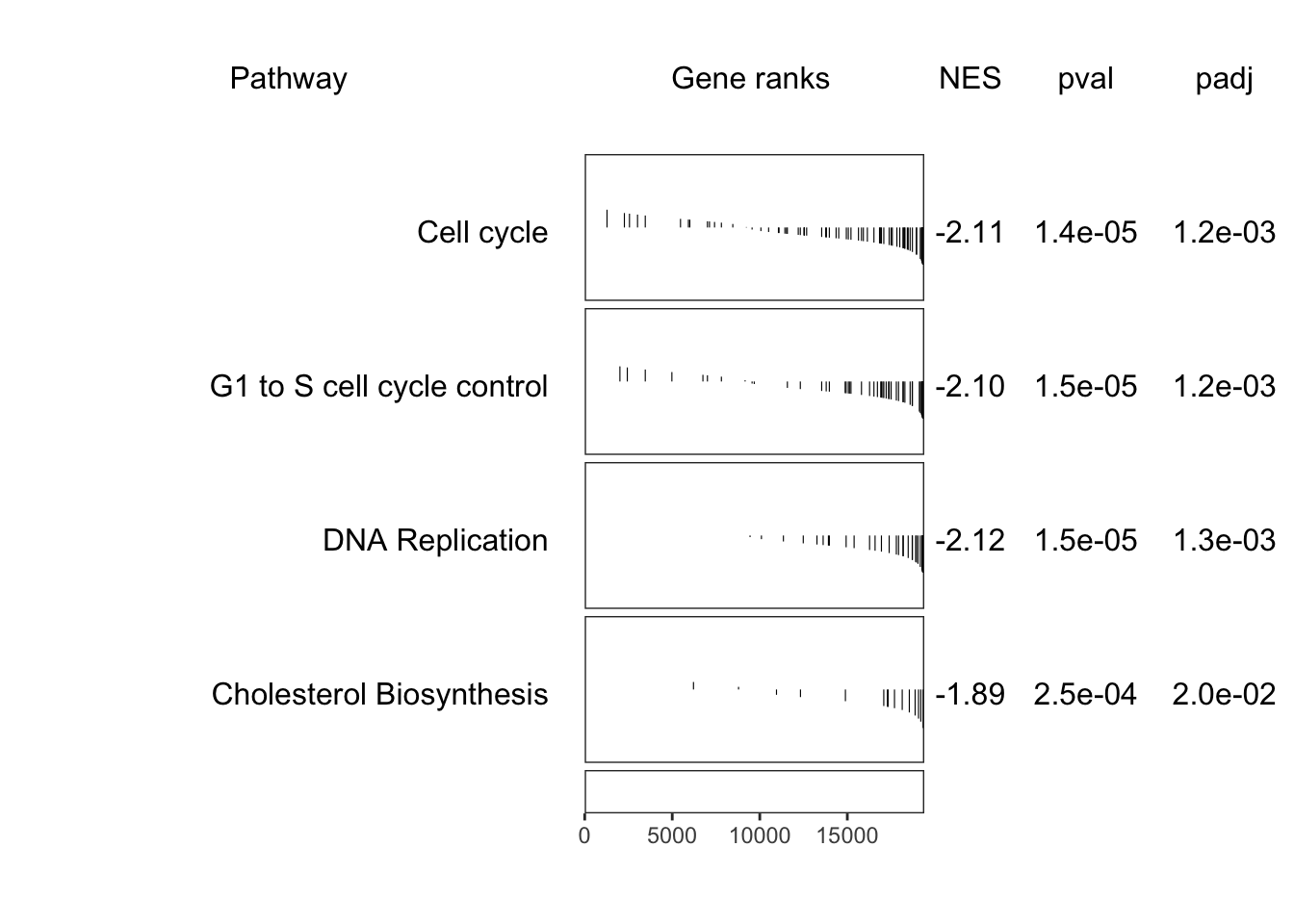

# Make a table plot of significant WikiPathways pathways
if (interactive()) grid::grid.newpage()
plotGseaTable(
wikiByID[fgseaWikiTop$pathway], ranks, fgseaWiki, gseaParam = 0.5
)
Data export
GSEAresult <- bind_rows(
fgseaHallmark,
fgseaKEGG,
fgseaWiki
) %>%
dplyr::filter(padj < 0.05) %>%
dplyr::select(
pathway, ES, NES, size, padj
)
write_csv(GSEAresult,here::here("output","GSEA_resulst.csv"))Use pathview to plot each significant KEGG pathway so as to visualize the changes.
keggDir <- here::here("keggdiagram")
keggPaths <- list.files(keggDir, pattern = "xml") %>%
str_replace_all(pattern = "dre([0-9]+).xml", "\\1")pv.out <- pathview(
gene.data = topTable %>%
dplyr::select(c("ensembl_gene_id", "logFC")) %>%
as.data.frame() %>%
column_to_rownames("ensembl_gene_id"),
pathway.id = keggPaths,
species = "Danio rerio",
kegg.dir = keggDir,
gene.idtype = "ENSEMBL",
limit = list(gene = 0.8, cpd = 0.8),
bins = list(gene = 16, cpd = 16)
)keggPng <- list.files(pattern = "dre.+pathview.png", full.names = TRUE)
file.rename(
keggPng,
here::here("docs", "figure", "3_GSEA.Rmd", basename(keggPng))
)All generated KEGG pathview files are available using the following links:
pngUrl <- tibble(
path = here::here("docs", "figure", "3_GSEA.Rmd", basename(keggPng)),
id = str_extract(path, "dre[0-9]+")
) %>%
split(f = .$id) %>%
vapply(function(x){
paste0("![](", x$path, ")\n\n\n")
},
character(1))
devtools::session_info()─ Session info ──────────────────────────────────────────────────────────
setting value
version R version 3.6.0 (2019-04-26)
os macOS Mojave 10.14.6
system x86_64, darwin15.6.0
ui X11
language (EN)
collate en_AU.UTF-8
ctype en_AU.UTF-8
tz Australia/Adelaide
date 2020-03-17
─ Packages ──────────────────────────────────────────────────────────────
package * version date lib source
AnnotationDbi * 1.46.1 2019-08-20 [1] Bioconductor
assertthat 0.2.1 2019-03-21 [1] CRAN (R 3.6.0)
backports 1.1.4 2019-04-10 [1] CRAN (R 3.6.0)
Biobase * 2.44.0 2019-05-02 [1] Bioconductor
BiocGenerics * 0.30.0 2019-05-02 [1] Bioconductor
BiocParallel 1.18.1 2019-08-06 [1] Bioconductor
Biostrings 2.52.0 2019-05-02 [1] Bioconductor
bit 1.1-14 2018-05-29 [1] CRAN (R 3.6.0)
bit64 0.9-7 2017-05-08 [1] CRAN (R 3.6.0)
bitops 1.0-6 2013-08-17 [1] CRAN (R 3.6.0)
blob 1.2.0 2019-07-09 [1] CRAN (R 3.6.0)
broom 0.5.2 2019-04-07 [1] CRAN (R 3.6.0)
callr 3.3.1 2019-07-18 [1] CRAN (R 3.6.0)
caTools 1.17.1.2 2019-03-06 [1] CRAN (R 3.6.0)
cellranger 1.1.0 2016-07-27 [1] CRAN (R 3.6.0)
cli 1.1.0 2019-03-19 [1] CRAN (R 3.6.0)
colorspace 1.4-1 2019-03-18 [1] CRAN (R 3.6.0)
crayon 1.3.4 2017-09-16 [1] CRAN (R 3.6.0)
curl 4.0 2019-07-22 [1] CRAN (R 3.6.0)
data.table 1.12.2 2019-04-07 [1] CRAN (R 3.6.0)
DBI 1.0.0 2018-05-02 [1] CRAN (R 3.6.0)
desc 1.2.0 2018-05-01 [1] CRAN (R 3.6.0)
devtools 2.2.2 2020-02-17 [1] CRAN (R 3.6.0)
digest 0.6.20 2019-07-04 [1] CRAN (R 3.6.0)
dplyr * 0.8.3 2019-07-04 [1] CRAN (R 3.6.0)
edgeR * 3.26.7 2019-08-13 [1] Bioconductor
ellipsis 0.3.0 2019-09-20 [1] CRAN (R 3.6.0)
evaluate 0.14 2019-05-28 [1] CRAN (R 3.6.0)
farver 1.1.0 2018-11-20 [1] CRAN (R 3.6.0)
fastmatch 1.1-0 2017-01-28 [1] CRAN (R 3.6.0)
fgsea * 1.10.1 2019-08-21 [1] Bioconductor
forcats * 0.4.0 2019-02-17 [1] CRAN (R 3.6.0)
fs 1.3.1 2019-05-06 [1] CRAN (R 3.6.0)
generics 0.0.2 2018-11-29 [1] CRAN (R 3.6.0)
ggforce 0.3.1 2019-08-20 [1] CRAN (R 3.6.0)
ggplot2 * 3.2.1 2019-08-10 [1] CRAN (R 3.6.0)
ggraph * 1.0.2 2018-07-07 [1] CRAN (R 3.6.0)
ggrepel * 0.8.1 2019-05-07 [1] CRAN (R 3.6.0)
git2r 0.26.1 2019-06-29 [1] CRAN (R 3.6.0)
glue 1.3.1 2019-03-12 [1] CRAN (R 3.6.0)
graph 1.62.0 2019-05-02 [1] Bioconductor
gridExtra 2.3 2017-09-09 [1] CRAN (R 3.6.0)
gtable 0.3.0 2019-03-25 [1] CRAN (R 3.6.0)
haven 2.1.1 2019-07-04 [1] CRAN (R 3.6.0)
here 0.1 2017-05-28 [1] CRAN (R 3.6.0)
hms 0.5.1 2019-08-23 [1] CRAN (R 3.6.0)
htmltools 0.3.6 2017-04-28 [1] CRAN (R 3.6.0)
httpuv 1.5.1 2019-04-05 [1] CRAN (R 3.6.0)
httr 1.4.1 2019-08-05 [1] CRAN (R 3.6.0)
igraph 1.2.4.1 2019-04-22 [1] CRAN (R 3.6.0)
IRanges * 2.18.2 2019-08-24 [1] Bioconductor
jsonlite 1.6 2018-12-07 [1] CRAN (R 3.6.0)
KEGGgraph 1.44.0 2019-05-02 [1] Bioconductor
KEGGREST 1.24.1 2019-10-08 [1] Bioconductor
knitr 1.24 2019-08-08 [1] CRAN (R 3.6.0)
labeling 0.3 2014-08-23 [1] CRAN (R 3.6.0)
later 0.8.0 2019-02-11 [1] CRAN (R 3.6.0)
lattice 0.20-38 2018-11-04 [1] CRAN (R 3.6.0)
lazyeval 0.2.2 2019-03-15 [1] CRAN (R 3.6.0)
limma * 3.40.6 2019-07-26 [1] Bioconductor
locfit 1.5-9.1 2013-04-20 [1] CRAN (R 3.6.0)
lubridate 1.7.4 2018-04-11 [1] CRAN (R 3.6.0)
magrittr * 1.5 2014-11-22 [1] CRAN (R 3.6.0)
MASS 7.3-51.4 2019-03-31 [1] CRAN (R 3.6.0)
Matrix 1.2-17 2019-03-22 [1] CRAN (R 3.6.0)
memoise 1.1.0 2017-04-21 [1] CRAN (R 3.6.0)
modelr 0.1.5 2019-08-08 [1] CRAN (R 3.6.0)
msigdbr * 7.0.1 2019-09-04 [1] CRAN (R 3.6.0)
munsell 0.5.0 2018-06-12 [1] CRAN (R 3.6.0)
nlme 3.1-141 2019-08-01 [1] CRAN (R 3.6.0)
org.Dr.eg.db 3.8.2 2019-11-20 [1] Bioconductor
org.Hs.eg.db * 3.8.2 2019-11-20 [1] Bioconductor
pander * 0.6.3 2018-11-06 [1] CRAN (R 3.6.0)
pathview * 1.24.0 2019-05-02 [1] Bioconductor
pillar 1.4.2 2019-06-29 [1] CRAN (R 3.6.0)
pkgbuild 1.0.6 2019-10-09 [1] CRAN (R 3.6.0)
pkgconfig 2.0.2 2018-08-16 [1] CRAN (R 3.6.0)
pkgload 1.0.2 2018-10-29 [1] CRAN (R 3.6.0)
plyr * 1.8.4 2016-06-08 [1] CRAN (R 3.6.0)
png 0.1-7 2013-12-03 [1] CRAN (R 3.6.0)
polyclip 1.10-0 2019-03-14 [1] CRAN (R 3.6.0)
prettyunits 1.0.2 2015-07-13 [1] CRAN (R 3.6.0)
processx 3.4.1 2019-07-18 [1] CRAN (R 3.6.0)
promises 1.0.1 2018-04-13 [1] CRAN (R 3.6.0)
ps 1.3.0 2018-12-21 [1] CRAN (R 3.6.0)
purrr * 0.3.3 2019-10-18 [1] CRAN (R 3.6.0)
R6 2.4.0 2019-02-14 [1] CRAN (R 3.6.0)
Rcpp * 1.0.2 2019-07-25 [1] CRAN (R 3.6.0)
RCurl 1.95-4.12 2019-03-04 [1] CRAN (R 3.6.0)
readr * 1.3.1 2018-12-21 [1] CRAN (R 3.6.0)
readxl 1.3.1 2019-03-13 [1] CRAN (R 3.6.0)
remotes 2.1.1 2020-02-15 [1] CRAN (R 3.6.0)
Rgraphviz 2.28.0 2019-05-02 [1] Bioconductor
RJSONIO 1.3-1.4 2020-01-15 [1] CRAN (R 3.6.0)
rlang 0.4.4 2020-01-28 [1] CRAN (R 3.6.0)
rmarkdown 1.15 2019-08-21 [1] CRAN (R 3.6.0)
rprojroot 1.3-2 2018-01-03 [1] CRAN (R 3.6.0)
RSQLite 2.1.2 2019-07-24 [1] CRAN (R 3.6.0)
rstudioapi 0.10 2019-03-19 [1] CRAN (R 3.6.0)
rvest 0.3.4 2019-05-15 [1] CRAN (R 3.6.0)
rWikiPathways * 1.4.1 2019-07-30 [1] Bioconductor
S4Vectors * 0.22.0 2019-05-02 [1] Bioconductor
scales * 1.0.0 2018-08-09 [1] CRAN (R 3.6.0)
sessioninfo 1.1.1 2018-11-05 [1] CRAN (R 3.6.0)
stringi 1.4.3 2019-03-12 [1] CRAN (R 3.6.0)
stringr * 1.4.0 2019-02-10 [1] CRAN (R 3.6.0)
testthat 2.3.1 2019-12-01 [1] CRAN (R 3.6.0)
tibble * 2.1.3 2019-06-06 [1] CRAN (R 3.6.0)
tidygraph * 1.1.2 2019-02-18 [1] CRAN (R 3.6.0)
tidyr * 0.8.3 2019-03-01 [1] CRAN (R 3.6.0)
tidyselect 0.2.5 2018-10-11 [1] CRAN (R 3.6.0)
tidyverse * 1.2.1 2017-11-14 [1] CRAN (R 3.6.0)
tweenr 1.0.1 2018-12-14 [1] CRAN (R 3.6.0)
usethis 1.5.1 2019-07-04 [1] CRAN (R 3.6.0)
vctrs 0.2.0 2019-07-05 [1] CRAN (R 3.6.0)
viridis 0.5.1 2018-03-29 [1] CRAN (R 3.6.0)
viridisLite 0.3.0 2018-02-01 [1] CRAN (R 3.6.0)
whisker 0.4 2019-08-28 [1] CRAN (R 3.6.0)
withr 2.1.2 2018-03-15 [1] CRAN (R 3.6.0)
workflowr 1.6.0 2019-12-19 [1] CRAN (R 3.6.0)
xfun 0.9 2019-08-21 [1] CRAN (R 3.6.0)
XML 3.98-1.20 2019-06-06 [1] CRAN (R 3.6.0)
xml2 1.2.2 2019-08-09 [1] CRAN (R 3.6.0)
XVector 0.24.0 2019-05-02 [1] Bioconductor
yaml 2.2.0 2018-07-25 [1] CRAN (R 3.6.0)
zeallot 0.1.0 2018-01-28 [1] CRAN (R 3.6.0)
zlibbioc 1.30.0 2019-05-02 [1] Bioconductor
[1] /Library/Frameworks/R.framework/Versions/3.6/Resources/library
